High Stability High Temperature Pressure Transducer Transmitter Sensor
Description High Temperature Pressure Transducer Transmitter Sensor
High Temperature Oil Pressure Transducer Transmitter select high-precision, high stability of the pressure sensor components, with high reliability amplification circuit and precision temperature compensation, make the measured medium absolute pressure or gauge pressure to 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC and 1 ~ 5VDC and other standard electrical signals. High-quality sensors, hermetically sealed packaging technology and a well-established assembly process ensure the highest quality and best performance of the product.
Parameters High Temperature Pressure Transducer Transmitter Sensor
| Measuring media | gas, liquid, oil and 316L compatible media |
| Measurement Range | Gage (G) (0 ~ 60) MPa- (0 ~ 10) KPa
Absolute pressure (A) (0 ~ 60) MPa- (0 ~ 10) KPa
Negative pressure (B) (- 0.1 ~ 60) MPa - (- 5 ~ 5) K |
| Accuracy class | 0.1,0.25,0.5 |
| Overload capacity | range of 2 to 5 times |
| Long-term stability | less than 0.3% FS / year |
| Power supply | 10 ~ 36 VDC (calibration voltage 24VDC) |
| Output signal | (4 ~ 20) mA (two / three wire system)(0 ~ 10/20) mA (0 ~ 5) V, (1 ~ 5) V, (0 ~ 10) V |
| Operating temperature | Liquid medium: (- 20 ~ 200) ℃
Gas medium: (- 20 ~ 300) ℃ Compensation temperature: (-20 ~ 300) ℃ |
| Process connection | 1/2npt male thread |
| Isolation diaphragm material | 316L stainless steel |
| Protection class | IP65 |
Features High Temperature Pressure Transducer Transmitter Sensor
High Temperature Oil Pressure Transducer Transmitter
Sealed welded structure
Diversification of the structure, the use of high temperature circuit boards
Strong anti-jamming sensor, long-term stability
Anti-lightning, anti-RF interference, high precision, all stainless steel structure
316 stainless steel isolation diaphragm structure
Small size, high stability, high sensitivity
A variety of range options, easy to debug
Using high temperature circuit board, all digital circuit to ensure accuracy
No adjustable positioner, to ensure long-term zero and linear excellent
Through the CE waterproof connector
Heat sink length according to the temperature setting, multi-layer continuous cooling, cooling effect is obvious
Stainless steel condensing buffer tube made of 304 stainless steel
Optional liquid crystal display. LED and no display header
2 laps stainless steel condensation buffer tube, better cooling effect
Product Tags:
|
|

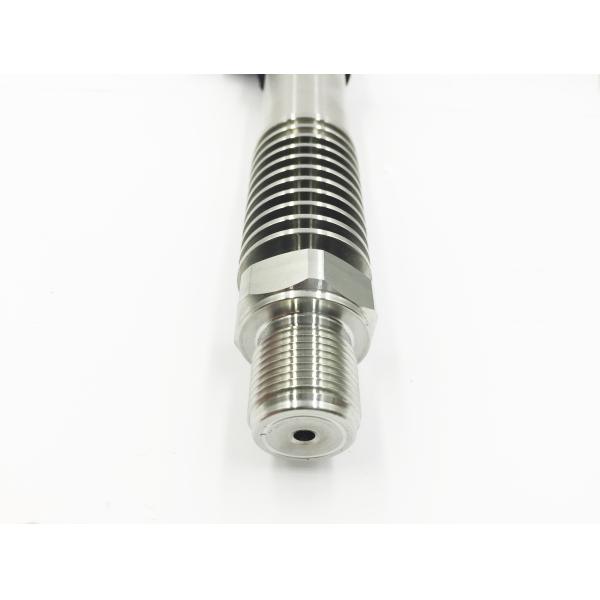

High Stability 316L SS High Temperature Pressure Transducer Images
|
